I wanted the garbage collection dates on my HA dashboard. Unfortunately, the city of Landshut doesn’t offer an API to access them directly. Instead you can download a garbage collection calendar in PDF format from the garbage disposal portal of the city of Landshut. After some analysis I found out that a third party service is used here: “Abfall.IO/AbfallPlus”

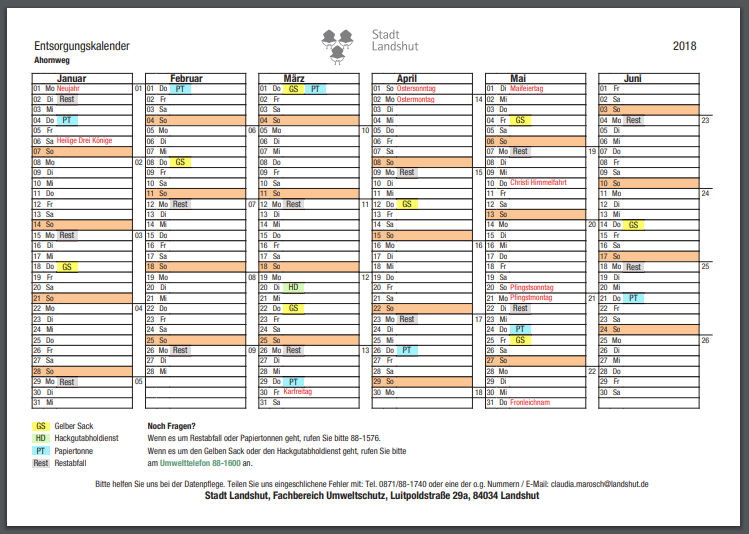

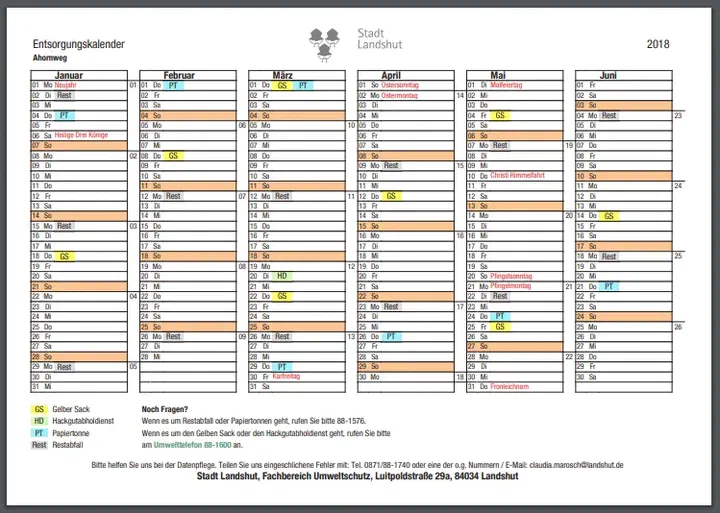

Waste Collection Schedule as PDF

Waste Collection Schedule as PDF

After viewing the information on the homepage of the provider (unfortunately not too many information is provided), I managed to get the data in the form of a CSV file.

I can now parse this data and display it as a sensor in Home-Assistant.

Result

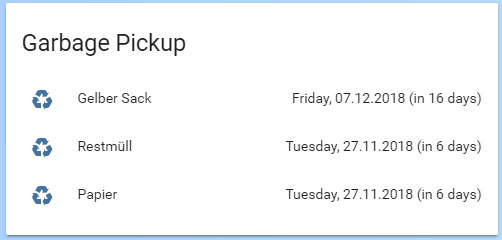

Next Waste Collection Dates in Home-Assistant Lovelace

Next Waste Collection Dates in Home-Assistant Lovelace

And as mentioned in the article originally, I want to see them in my HA Dashboard of course:

Next Waste Collection Dates in Home-Assistant Lovelace

Next Waste Collection Dates in Home-Assistant Lovelace

Configuration

/home-assistant/custom_components/sensor/abfall_landshut.py

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
import logging
import requests
import csv
from datetime import datetime
from datetime import timedelta
import voluptuous as vol
from pprint import pprint

from homeassistant.components.sensor import PLATFORM_SCHEMA
import homeassistant.helpers.config_validation as cv
from homeassistant.const import (CONF_RESOURCES)
from homeassistant.util import Throttle
from homeassistant.helpers.entity import Entity

_LOGGER = logging.getLogger(__name__)

MIN_TIME_BETWEEN_UPDATES = timedelta(days=1)

SENSOR_PREFIX = 'Waste '

SENSOR_TYPES = {
    'restmuell': ['Restmüll', '', 'mdi:recycle'],
    'gelbersack': ['Gelber Sack', '', 'mdi:recycle'],
    'papiertonne': ['Papier', '', 'mdi:recycle'],
}

PLATFORM_SCHEMA = PLATFORM_SCHEMA.extend({
    vol.Required(CONF_RESOURCES, default=[]):
        vol.All(cv.ensure_list, [vol.In(SENSOR_TYPES)]),
})


def setup_platform(hass, config, add_entities, discovery_info=None):
    _LOGGER.debug("Setup Abfall API retriever")

    try:
        data = AbfallData()
    except requests.exceptions.HTTPError as error:
        _LOGGER.error(error)
        return False

    entities = []

    for resource in config[CONF_RESOURCES]:
        sensor_type = resource.lower()

        if sensor_type not in SENSOR_TYPES:
            SENSOR_TYPES[sensor_type] = [
                sensor_type.title(), '', 'mdi:flash']

        entities.append(AbfallSensor(data, sensor_type))

    add_entities(entities)


class AbfallData(object):

    def __init__(self):
        self.data = None

    @Throttle(MIN_TIME_BETWEEN_UPDATES)
    def update(self):
        _LOGGER.debug("Updating Abfall dates using remote API")
        try:
            payload = {
                "f_id_kommune": "2655",
                "f_id_bezirk": "2655",
                "f_id_strasse": "763",
                "f_id_abfalltyp_0": "31",
                "f_id_abfalltyp_1": "17",
                "f_id_abfalltyp_2": "19",
                "f_id_abfalltyp_3": "218",
                "f_abfallarten_index_max": "4",
                "f_abfallarten": "31,17,19,218,31,17,19,218",
                "f_zeitraum": "20190101-20301231"
            }

            j = requests.post(
                "http://api.abfall.io/?key=bd0c2d0177a0849a905cded5cb734a6f&modus=d6c5855a62cf32a4dadbc2831f0f295f&waction=export_csv", data=payload, timeout=10)

            apiRequest = j.text.split('\n')
            reader = csv.reader(apiRequest, delimiter=";")
            rowCounter = 0
            columns = None
            gelberSack = []
            restMuell = []
            papierTonne = []

            for row in reader:
                if rowCounter == 0:
                    columns = {k:row.index(k) for k in row}

                else:
                    if (row[columns["Gelber Sack"]] != ""):
                        gelberSack.append(datetime.strptime(row[columns["Gelber Sack"]], "%d.%m.%Y"))

                    if (row[columns["Restabfall"]] != ""):
                        restMuell.append(datetime.strptime(row[columns["Restabfall"]], "%d.%m.%Y"))

                    if (row[columns["Papiertonne"]] != ""):
                        papierTonne.append(datetime.strptime(row[columns["Papiertonne"]], "%d.%m.%Y"))

                rowCounter = rowCounter + 1

            gelberSack.sort(key=lambda date: date)
            restMuell.sort(key=lambda date: date)
            papierTonne.sort(key=lambda date: date)

            nextDates = {}

            for nextDate in gelberSack:
                if nextDate > datetime.now():
                    nextDates["gelberSack"] = nextDate
                    break

            for nextDate in restMuell:
                if nextDate > datetime.now():
                    nextDates["restMuell"] = nextDate
                    break

            for nextDate in papierTonne:
                if nextDate > datetime.now():
                    nextDates["papierTonne"] = nextDate
                    break

            self.data = nextDates

        except requests.exceptions.RequestException as exc:
            _LOGGER.error("Error occurred while fetching data: %r", exc)
            self.data = None
            return False


class AbfallSensor(Entity):

    def __init__(self, data, sensor_type):
        self.data = data
        self.type = sensor_type
        self._name = SENSOR_PREFIX + SENSOR_TYPES[self.type][0]
        self._unit = SENSOR_TYPES[self.type][1]
        self._icon = SENSOR_TYPES[self.type][2]
        self._state = None
        self._attributes = {}

    @property
    def name(self):
        return self._name

    @property
    def icon(self):
        return self._icon

    @property
    def state(self):
        return self._state

    @property
    def unit_of_measurement(self):
        return self._unit

    @property
    def device_state_attributes(self):
        """Return attributes for the sensor."""
        return self._attributes

    def update(self):
        self.data.update()
        abfallData = self.data.data

        try:
            if self.type == 'gelbersack':
                self._state = abfallData.get("gelberSack")
            elif self.type == 'restmuell':
                self._state = abfallData.get("restMuell")
            elif self.type == 'papiertonne':
                self._state = abfallData.get("papierTonne")

            if self._state is not None:
                weekdays = ["Mo", "Di", "Mi", "Do", "Fr", "Sa", "So"]
                self._attributes['days'] = (self._state.date() - datetime.now().date()).days
                if self._attributes['days'] == 0:
                    printtext = "heute"
                elif self._attributes['days'] == 1:
                    printtext = "morgen"
                else:
                    printtext = 'in {} Tagen'.format(self._attributes['days'])
                self._attributes['display_text'] = self._state.strftime(
                    '{}, %d.%m.%Y ({})').format(weekdays[self._state.weekday()], printtext)

        except ValueError:
            self._state = None

/home-assistant/configuration.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
- platform: abfall_landshut
  resources:
    - gelbersack
    - restmuell
    - papiertonne

- platform: template
  sensors:
    gelbersack_text:
      value_template: "{{states.sensor.waste_gelber_sack.attributes.display_text}}"
      friendly_name: 'Gelber Sack'
      icon_template: mdi:sack
    papiertonne_text:
      value_template: "{{states.sensor.waste_papier.attributes.display_text}}"
      friendly_name: 'Papier'
      icon_template: mdi:delete-empty
    restmuell_text:
      value_template: "{{states.sensor.waste_restmull.attributes.display_text}}"
      friendly_name: 'Restmüll'
      icon_template: mdi:trash-can-outline

/home-assistant/automations/notifications.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
- alias: 'Notify: Garbage (Gelber Sack)'
  trigger:
  - at: '18:30:00'
    platform: time
  condition:
  - condition: template
    value_template: '{{ states.sensor.waste_gelber_sack.attributes.days <= 1 }}'
  action:
    service: notify.notify
    data_template:
      title: Gelber Sack
      message: '*Gelber Sack* rausbringen. Abholung *morgen*, am: {{states.sensor.waste_gelber_sack.attributes.display_text}}'


- alias: 'Notify: Garbage (Papiertonne)'
  trigger:
  - at: '18:30:00'
    platform: time
  condition:
  - condition: template
    value_template: '{{ states.sensor.waste_papier.attributes.days <= 1 }}'
  action:
    service: notify.notify
    data_template:
      title: Papiertonne
      message: '*Papiertonne* rausbringen. Abholung *morgen*, am: {{states.sensor.waste_papier.attributes.display_text}}'


- alias: 'Notify: Garbage (Restmüll)'
  trigger:
  - at: '18:30:00'
    platform: time
  condition:
  - condition: template
    value_template: '{{ states.sensor.waste_restmull.attributes.days <= 1 }}'
  action:
    service: notify.notify
    data_template:
      title: Restmüll
      message: '*Restmüll* rausbringen. Abholung *morgen*, am: {{states.sensor.waste_restmull.attributes.display_text}}'

I posted an link to this article in the community of Home-Assistant. I got a lot of good feedback there and also some improvements for the scripts above. I added these improvements already on this page. Thats the link to the post (with the comments):
