Mit meinem Grossvater zusammen hab ich die Visaton Atlas 200 Light nachgebaut.

Vielen Dank an Volker & mr_head für die Erstellung des Bauplans und der Weiche.

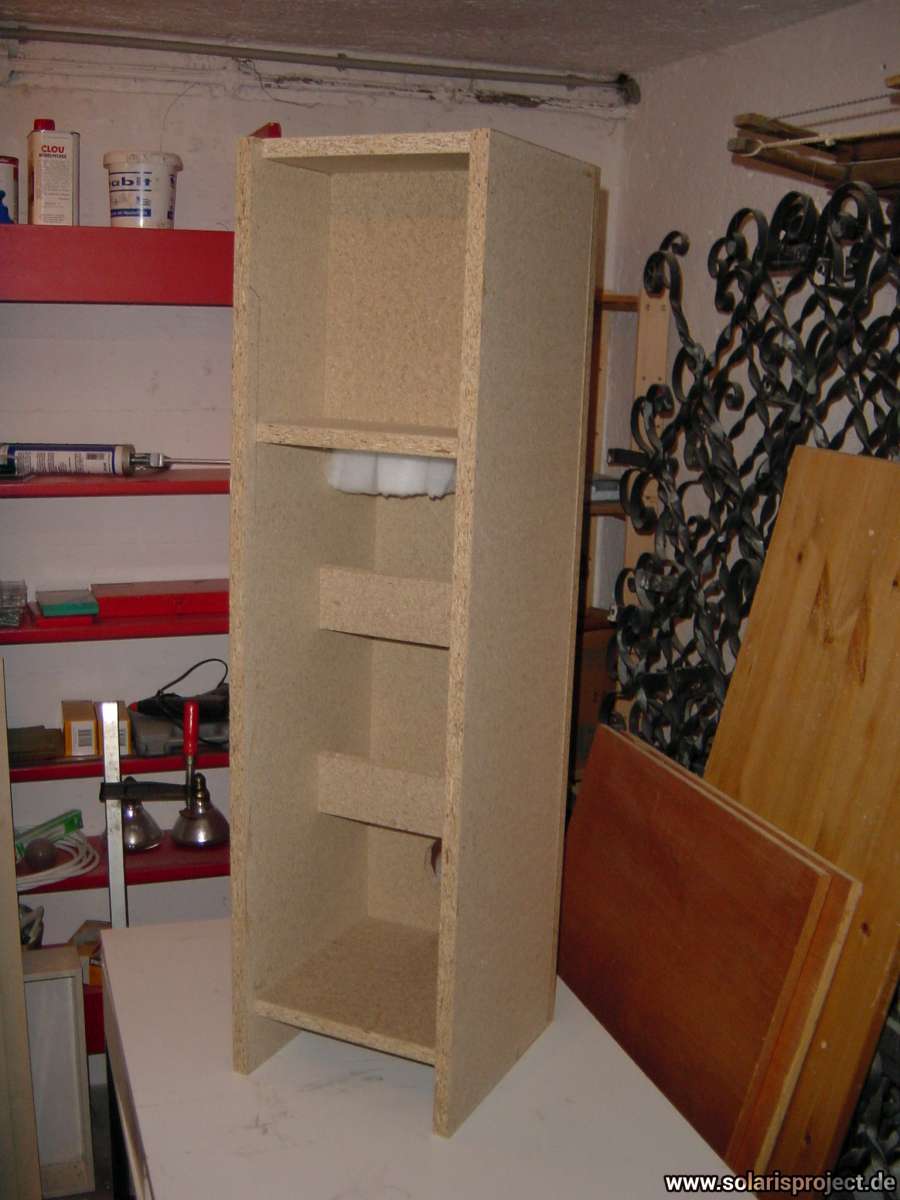

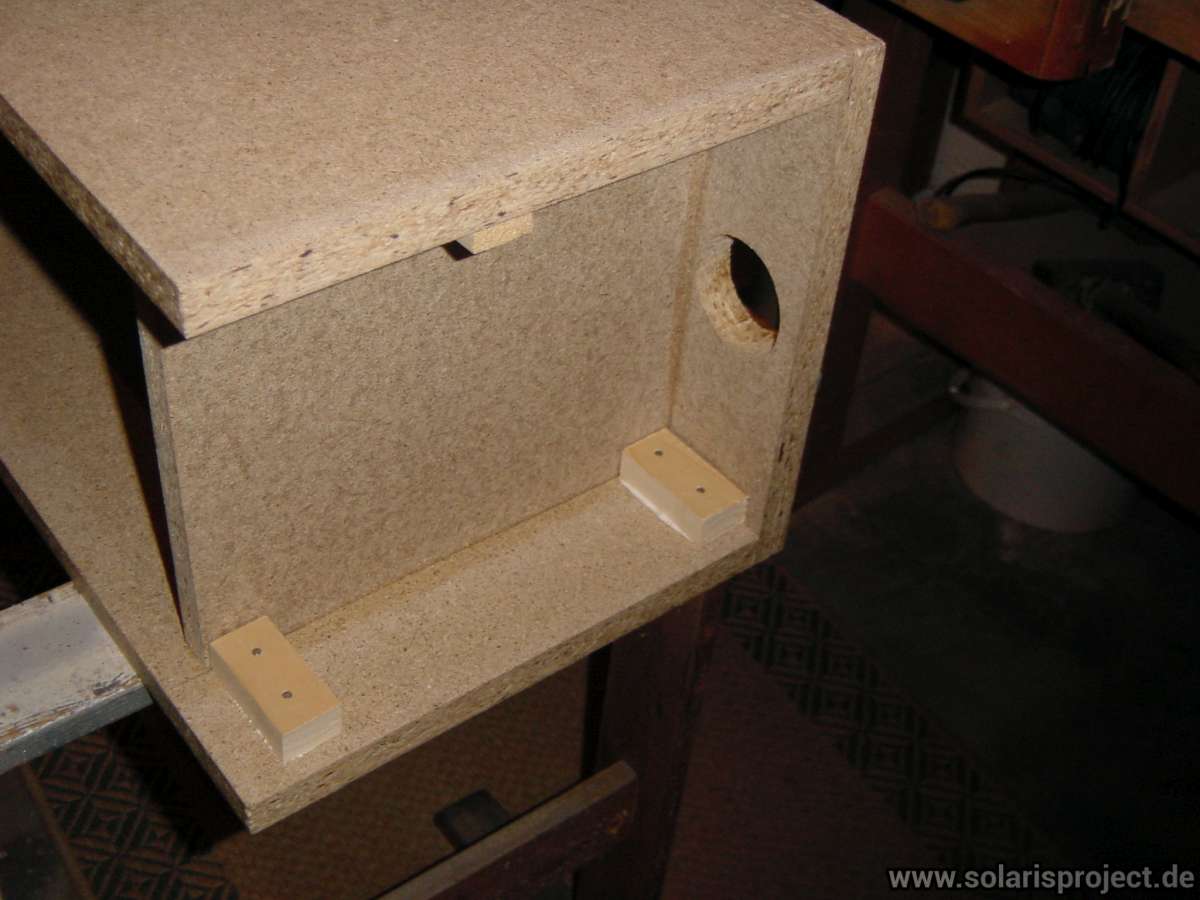

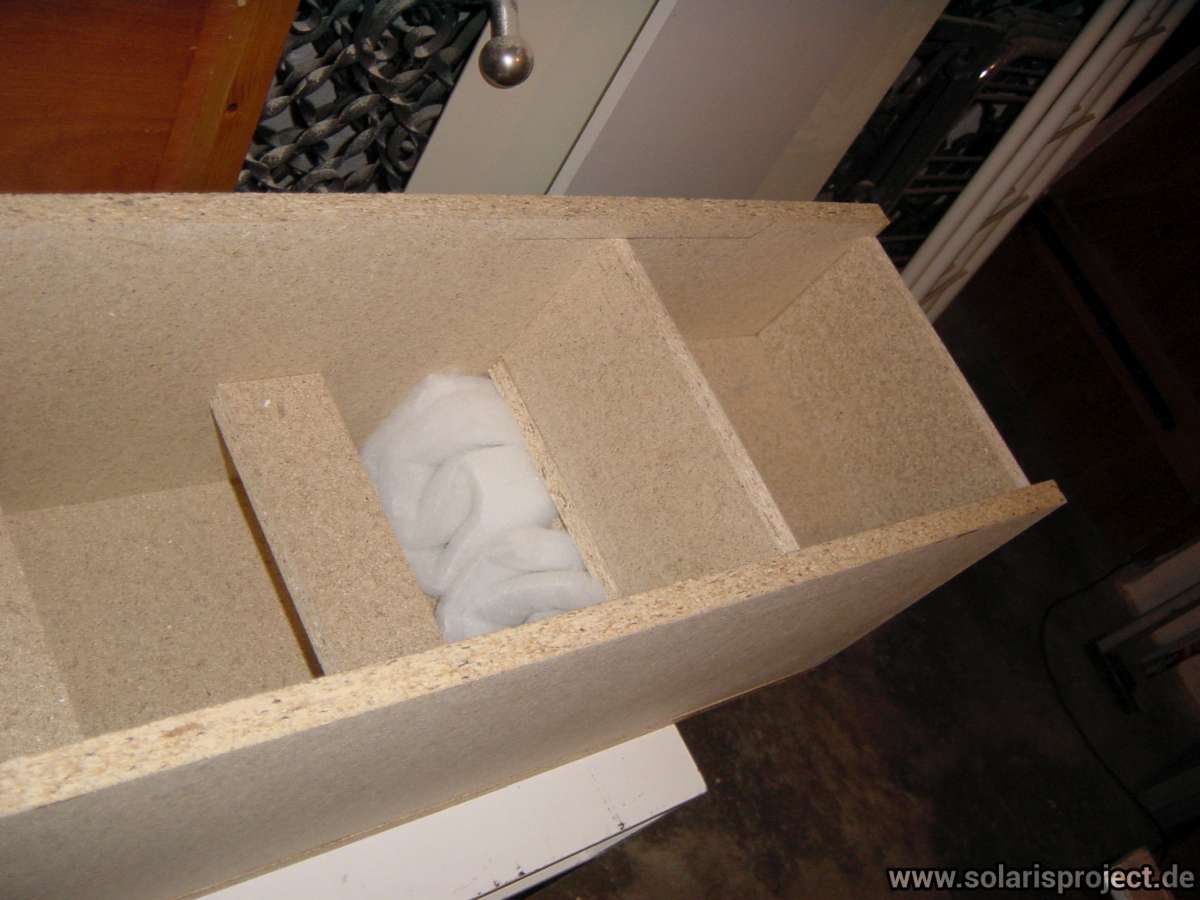

Bilder im Bau

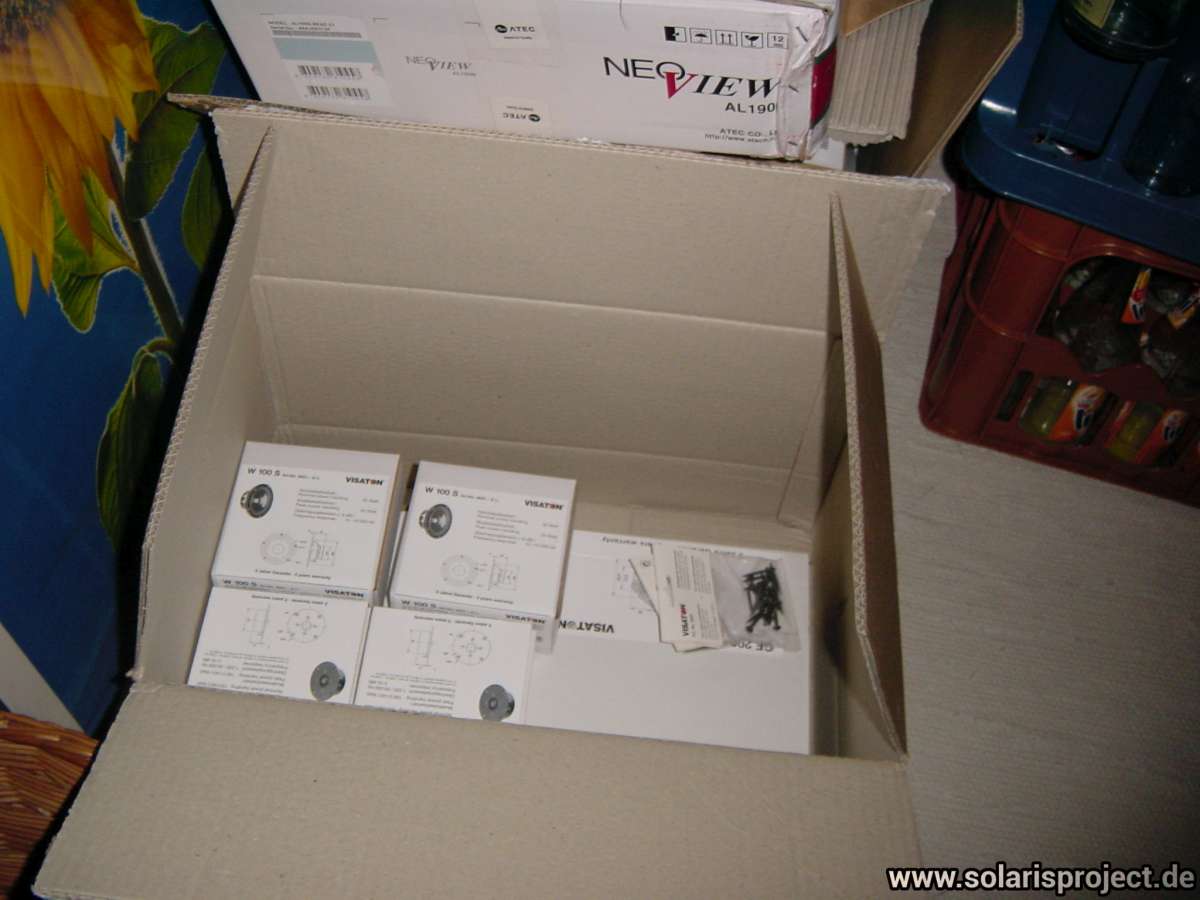

Open speaker cabinet with Visaton chassis parts

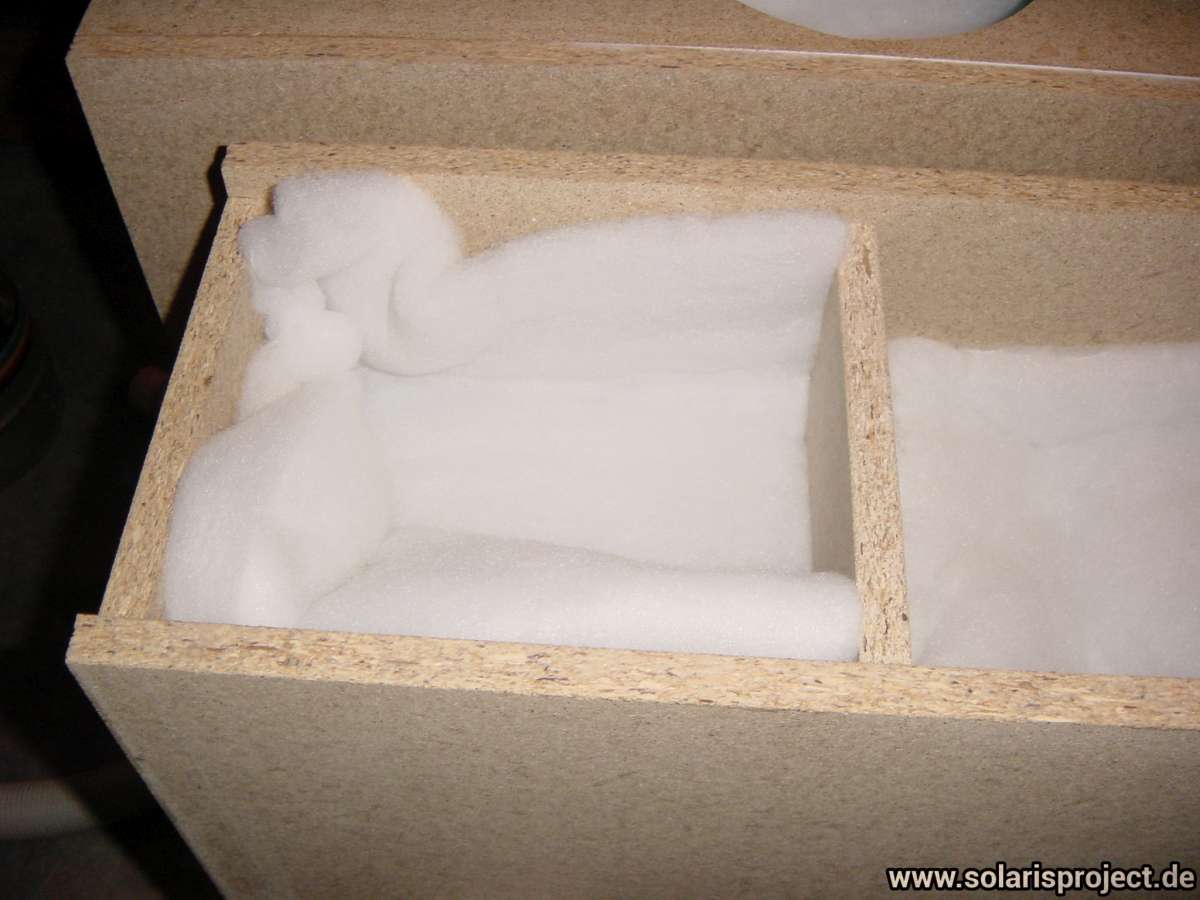

Foam damping material inside speaker cabinet

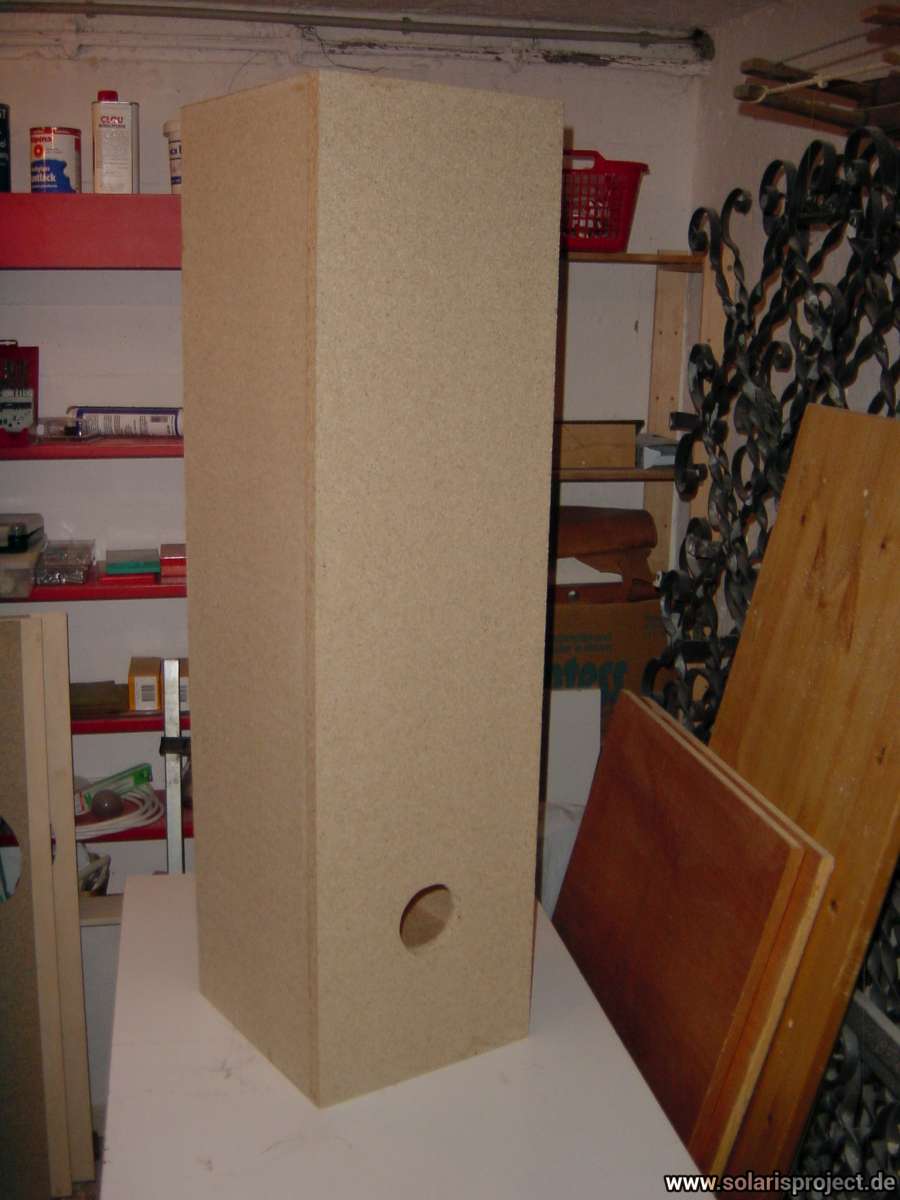

Unfinished wooden speaker cabinet body

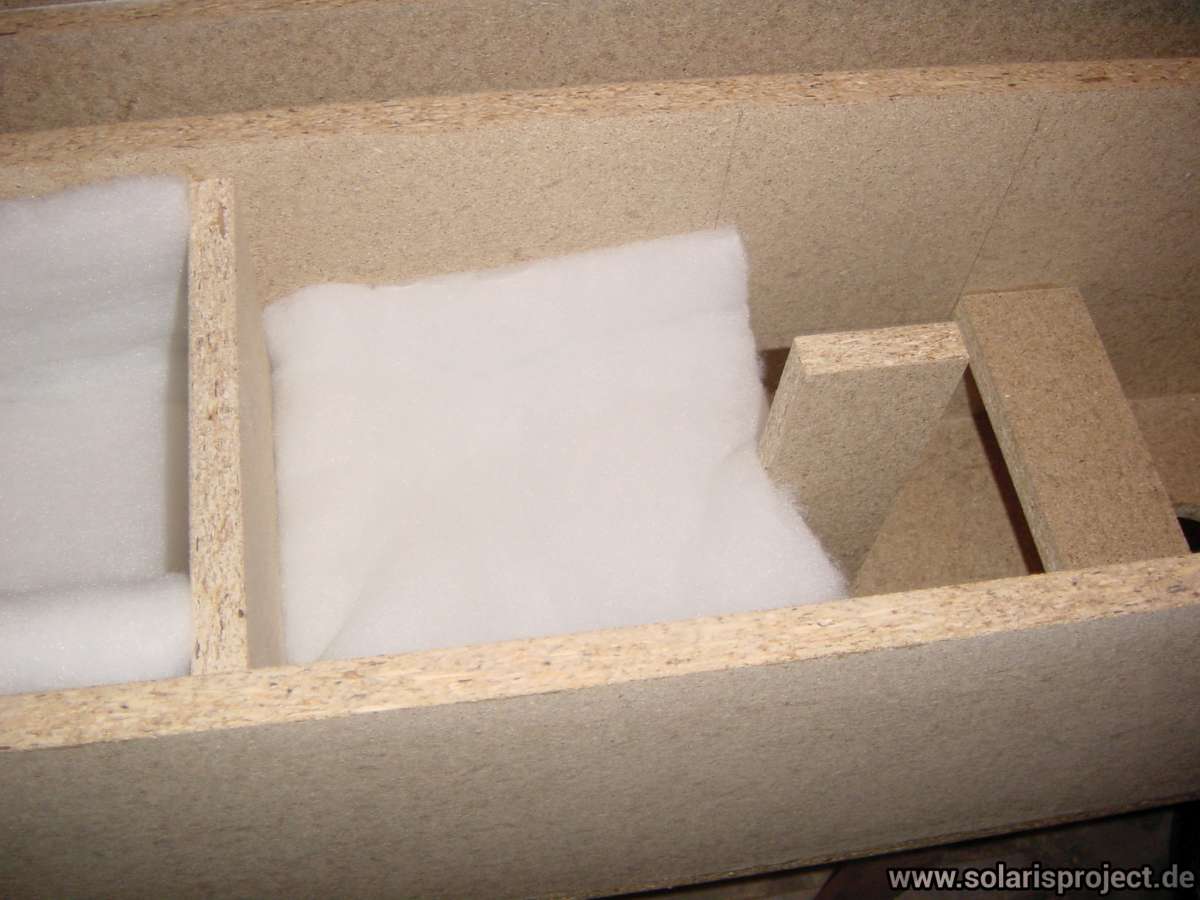

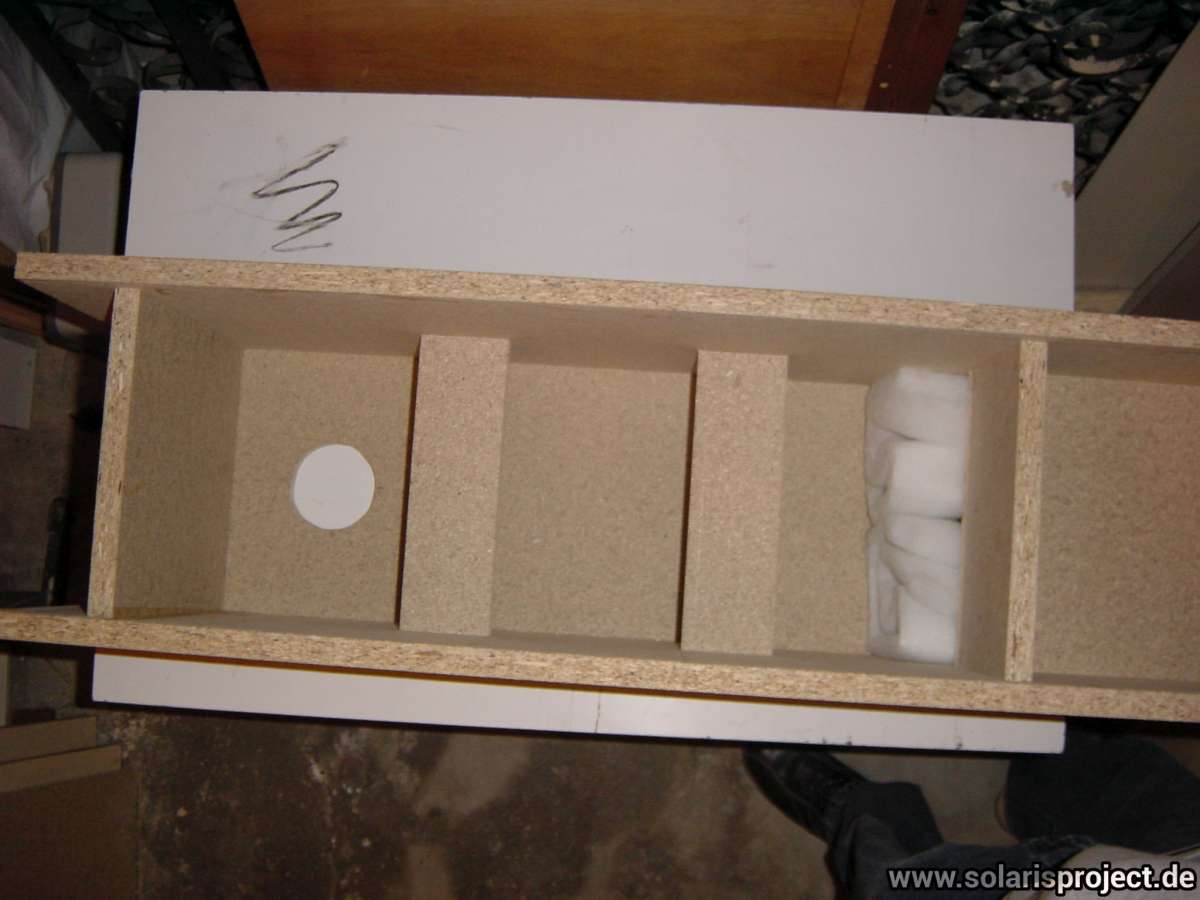

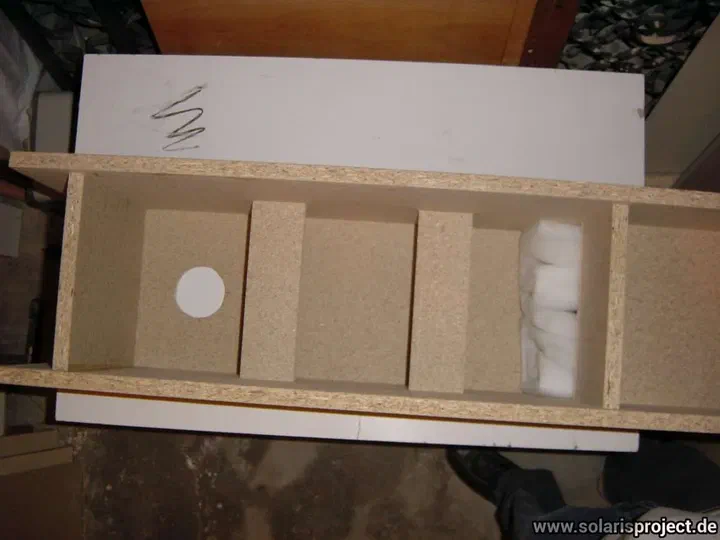

Speaker box with driver cutouts and foam lining

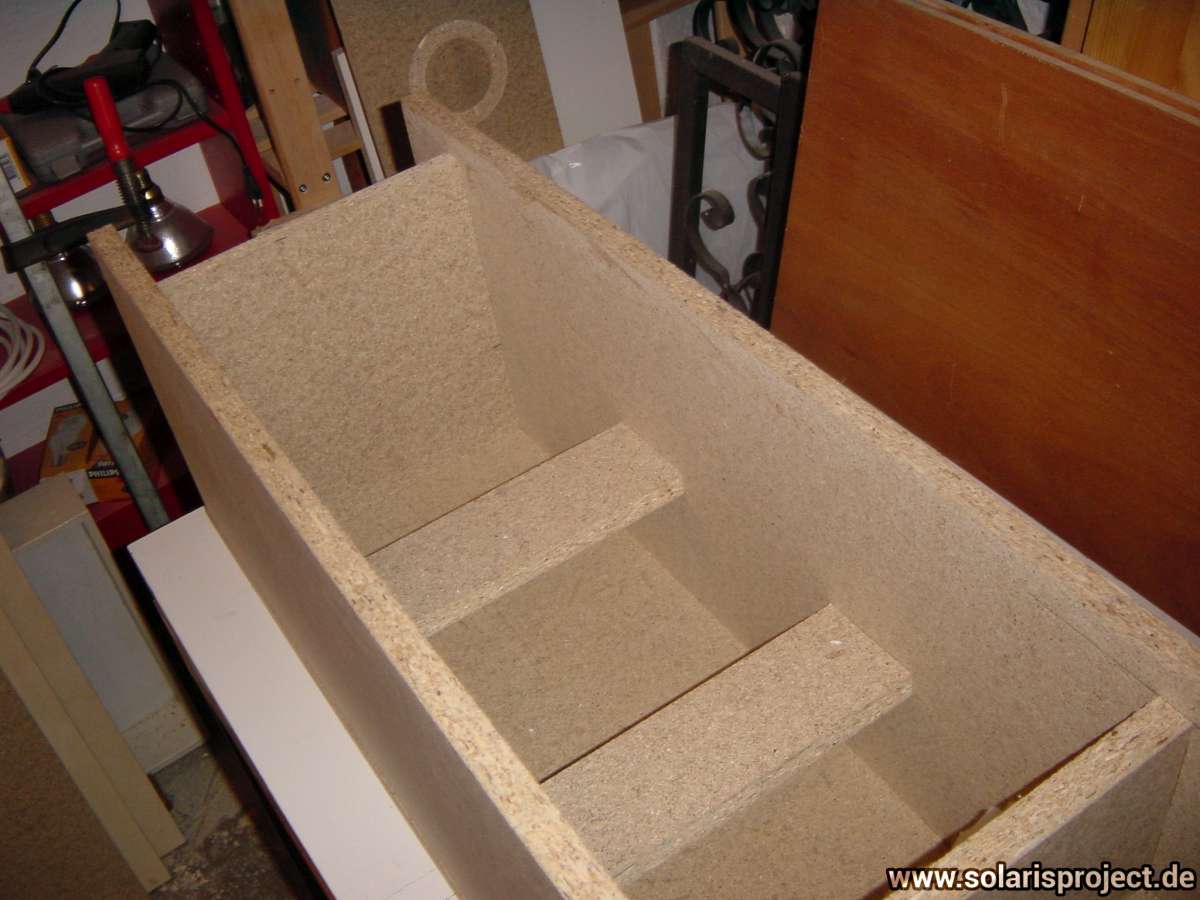

Speaker cabinet under construction in workshop

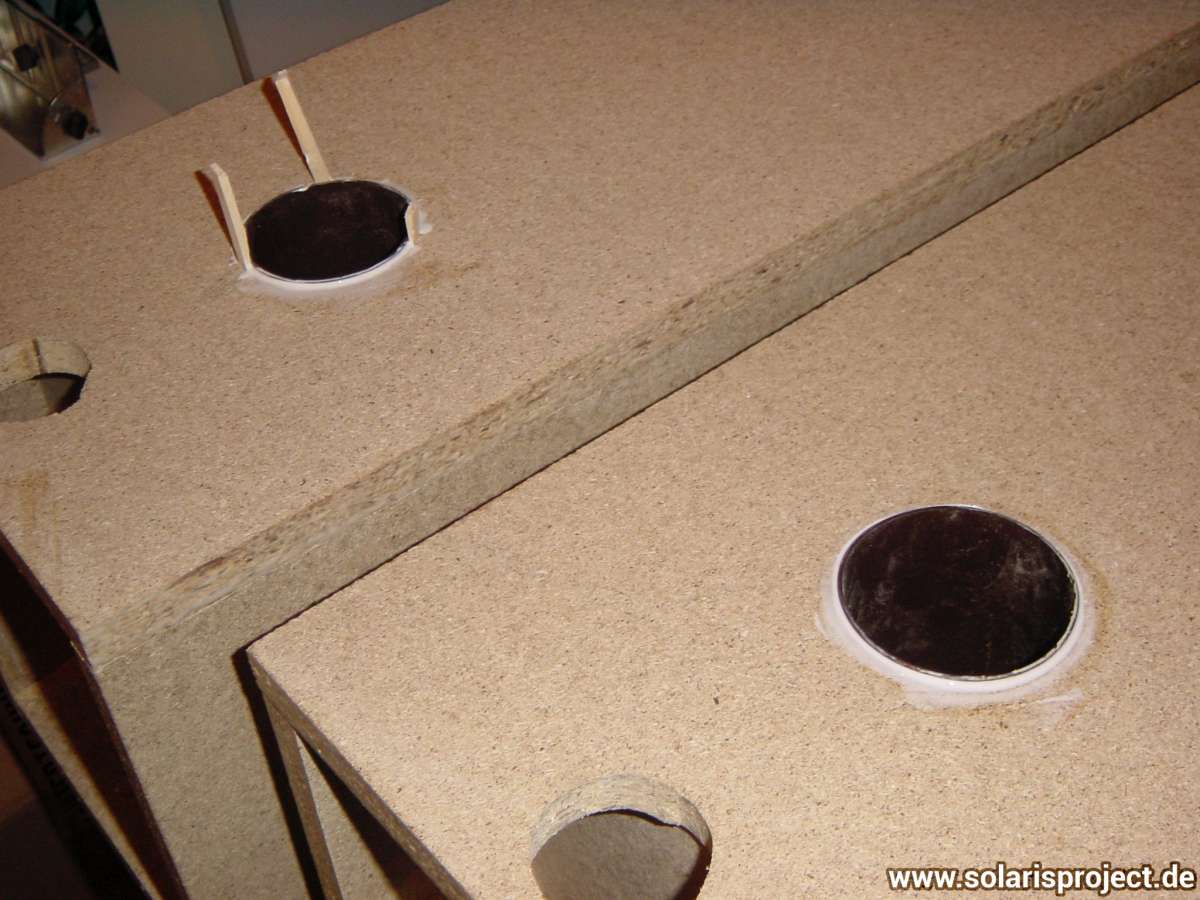

Wooden panel with speaker driver cutout holes
Speaker cabinet filled with sand for damping
Speaker cabinet assembly in progress

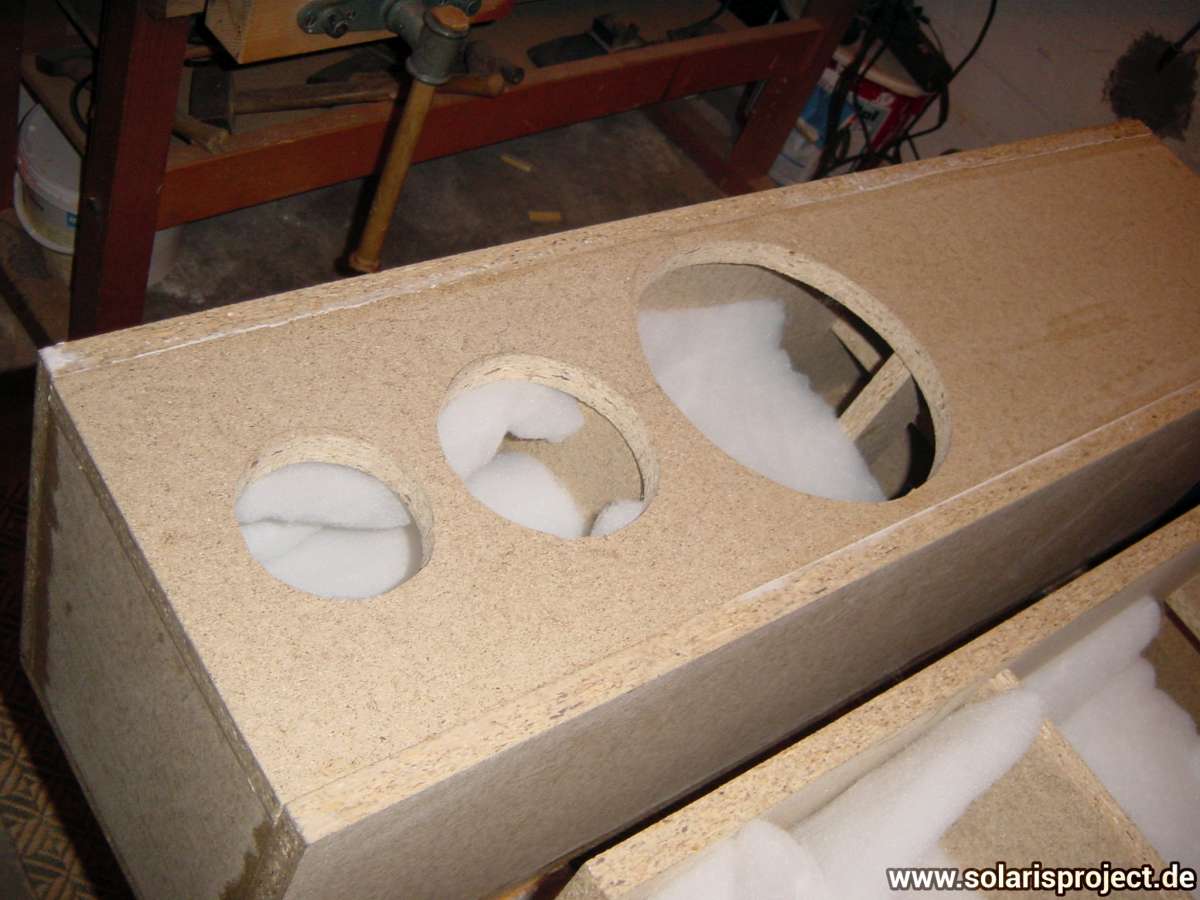

Speaker cabinet with three circular driver cutouts
Speaker cabinet in workshop during construction

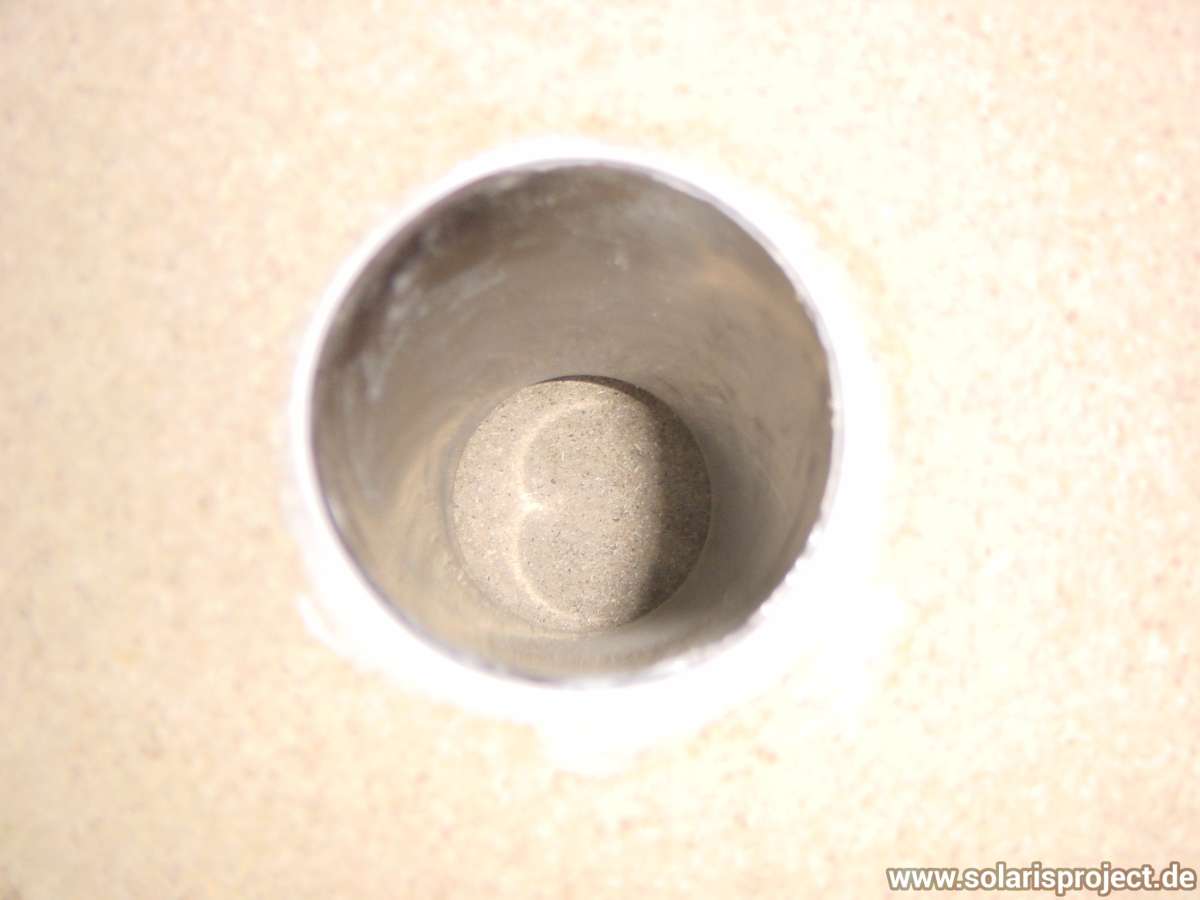

Speaker front panel with chassis cutouts
Speaker cabinet with sand-filled chambers

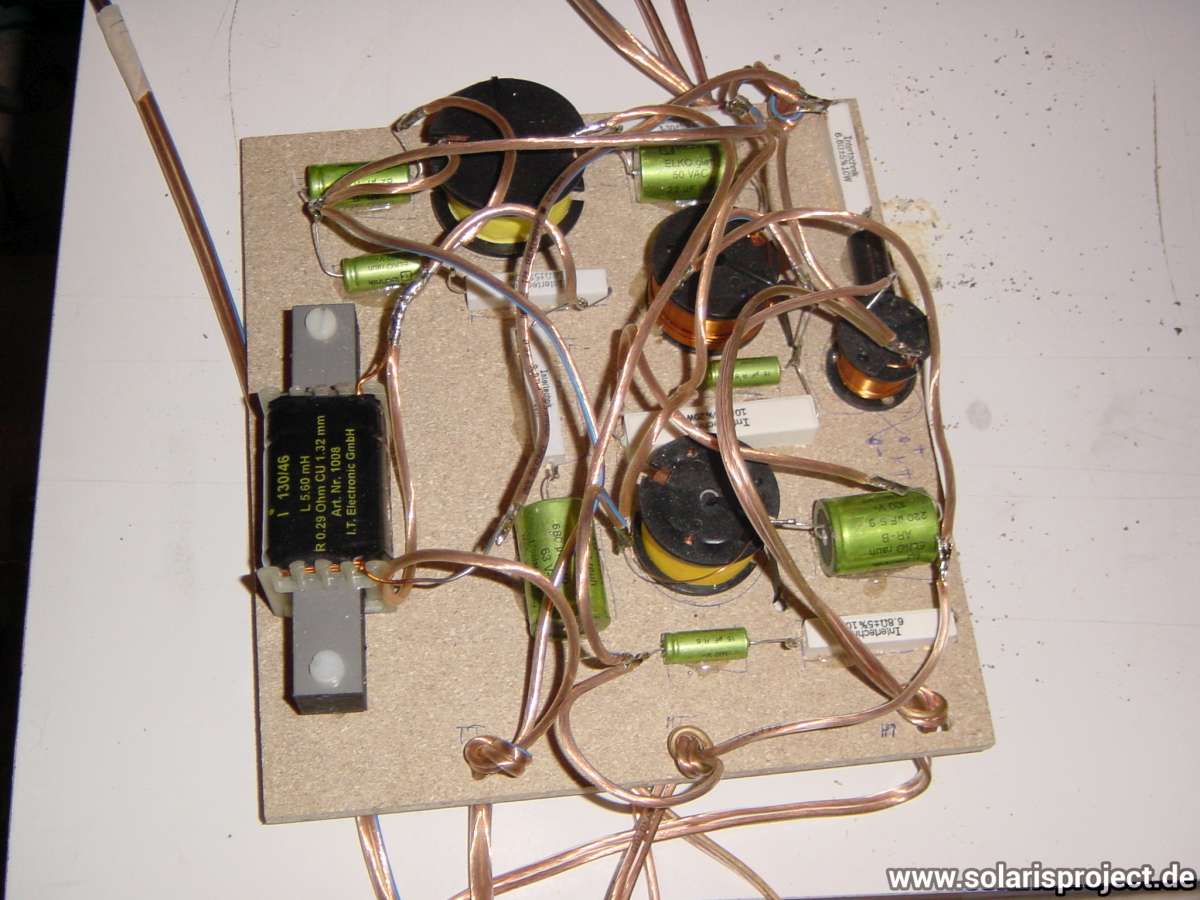

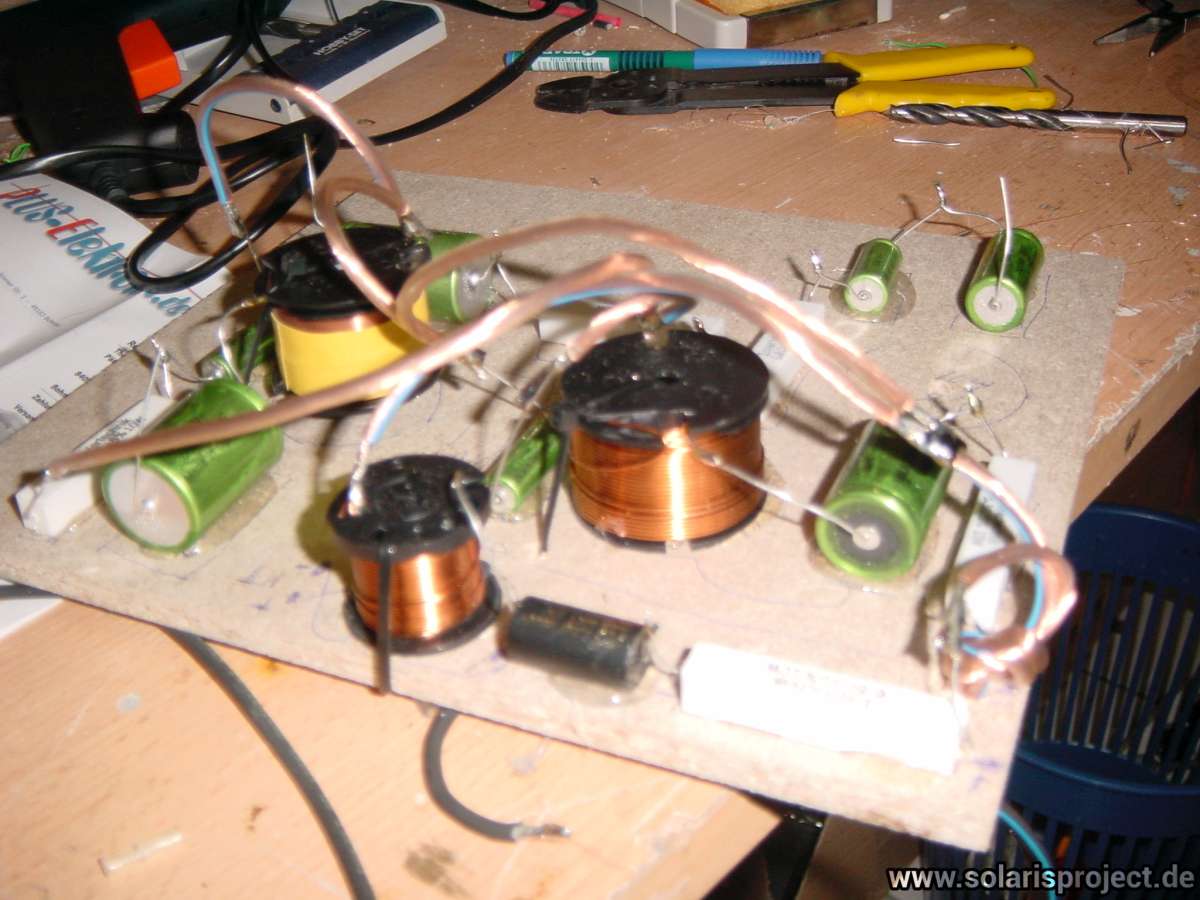

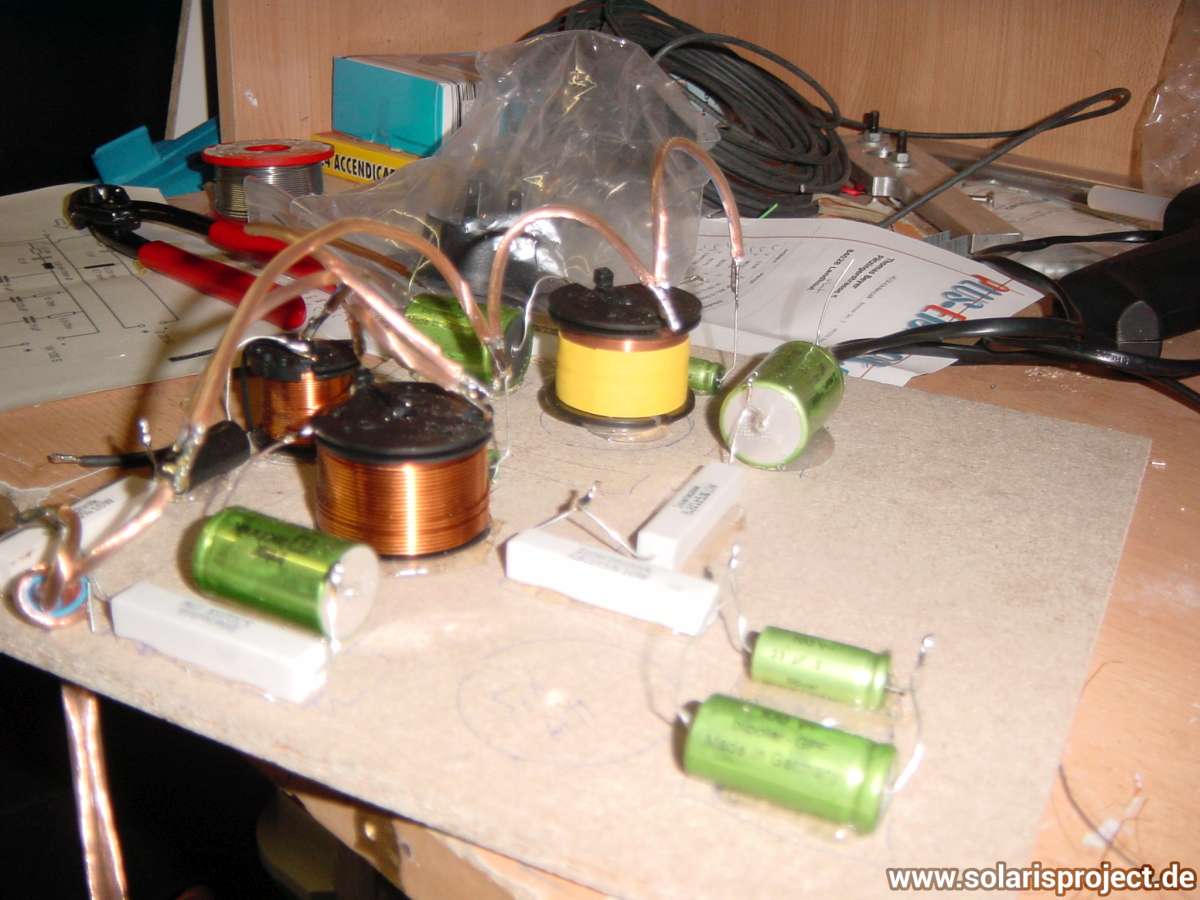

Weiche

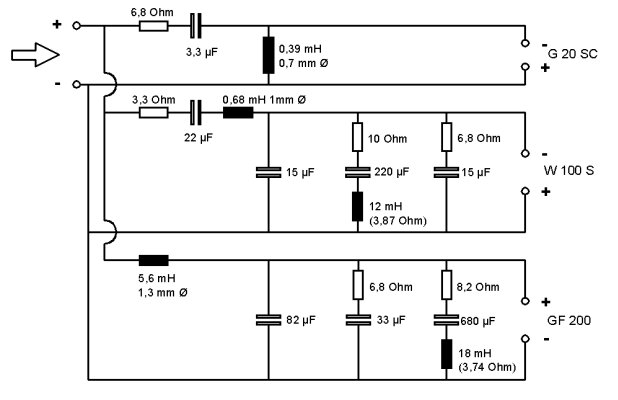

Crossover schematic circuit diagram

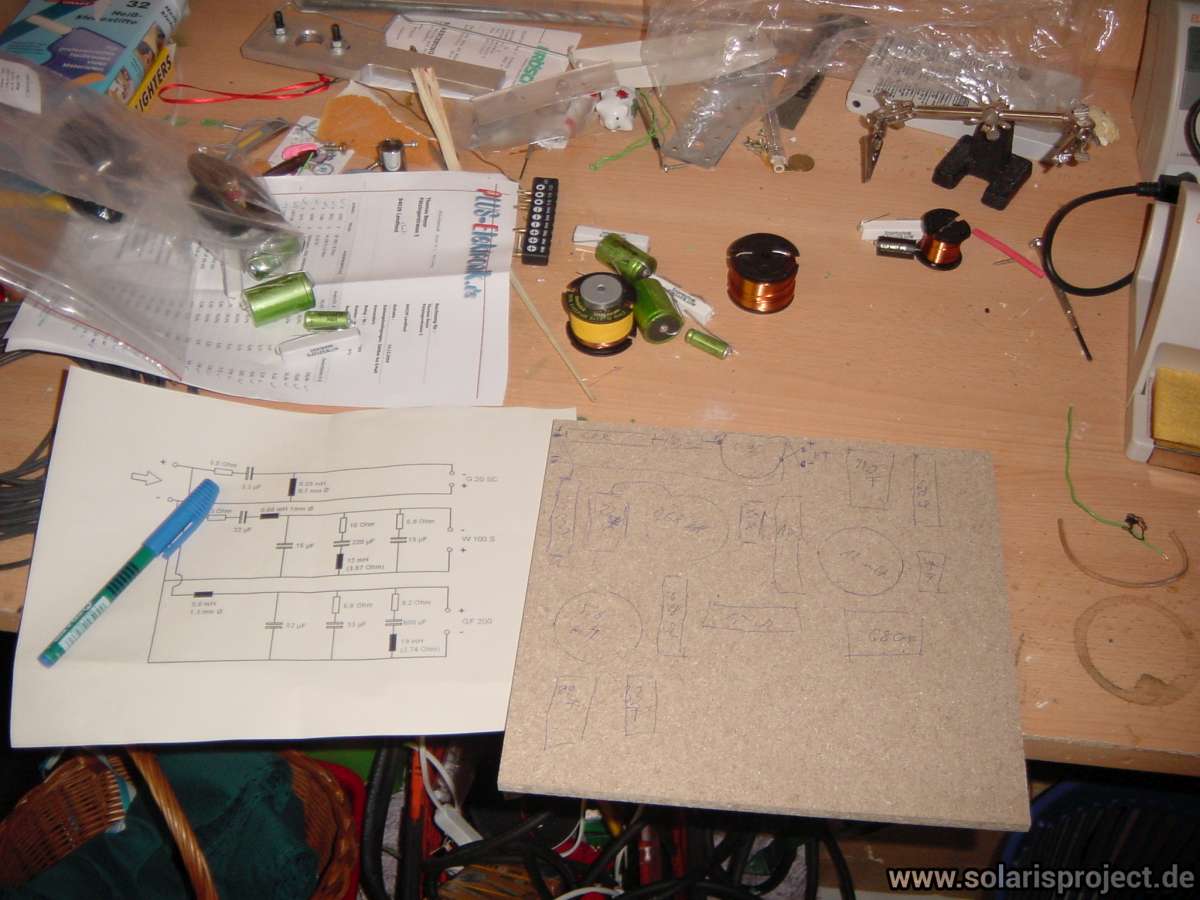

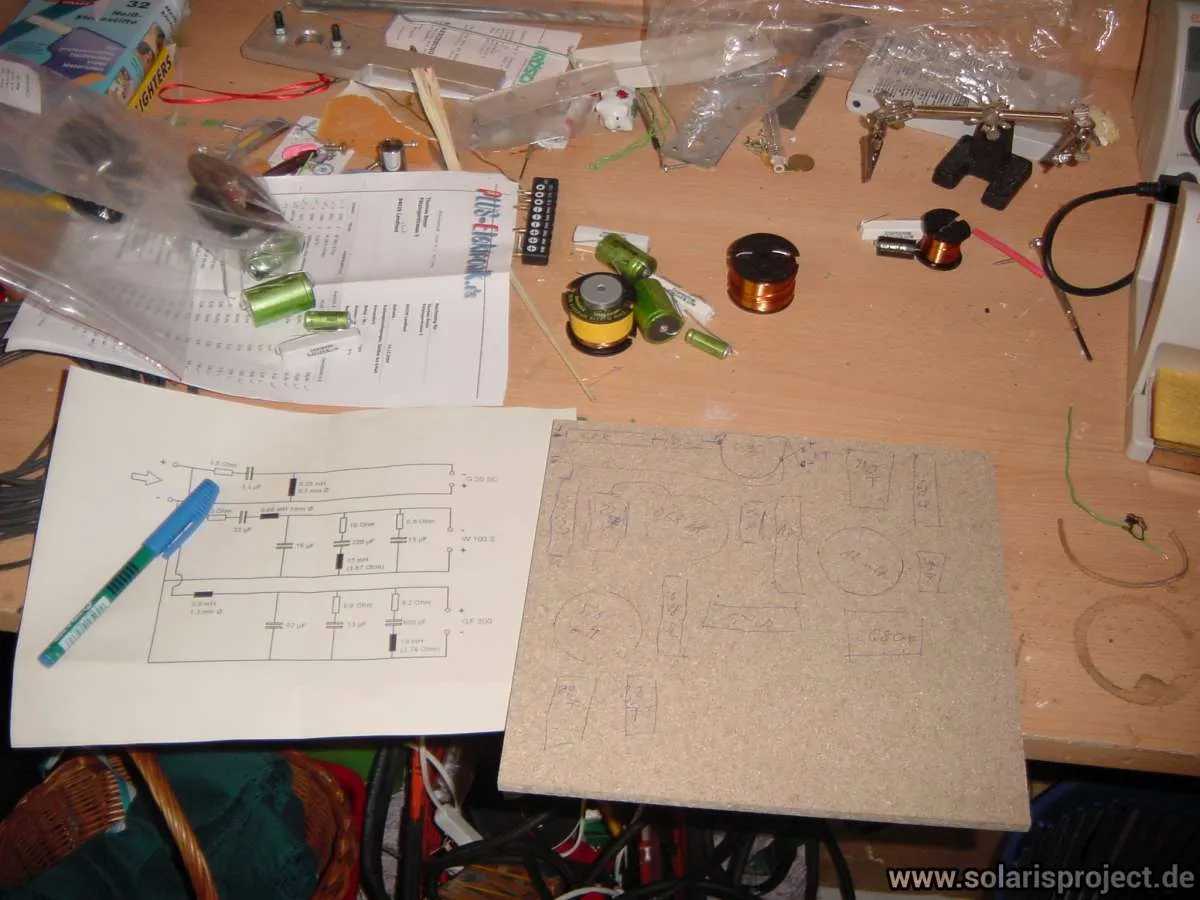

Crossover components laid out on workbench

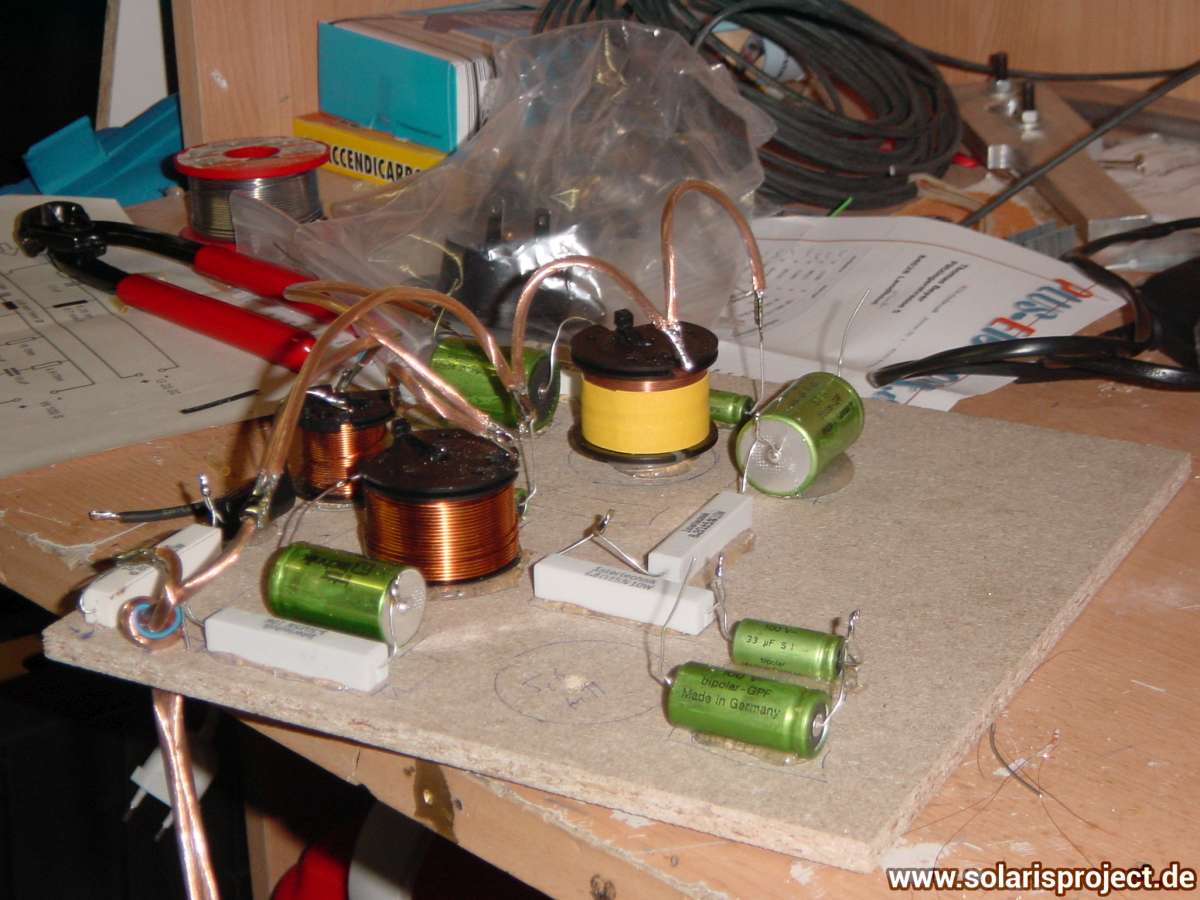

Crossover circuit board under assembly
Crossover schematic and wiring plan

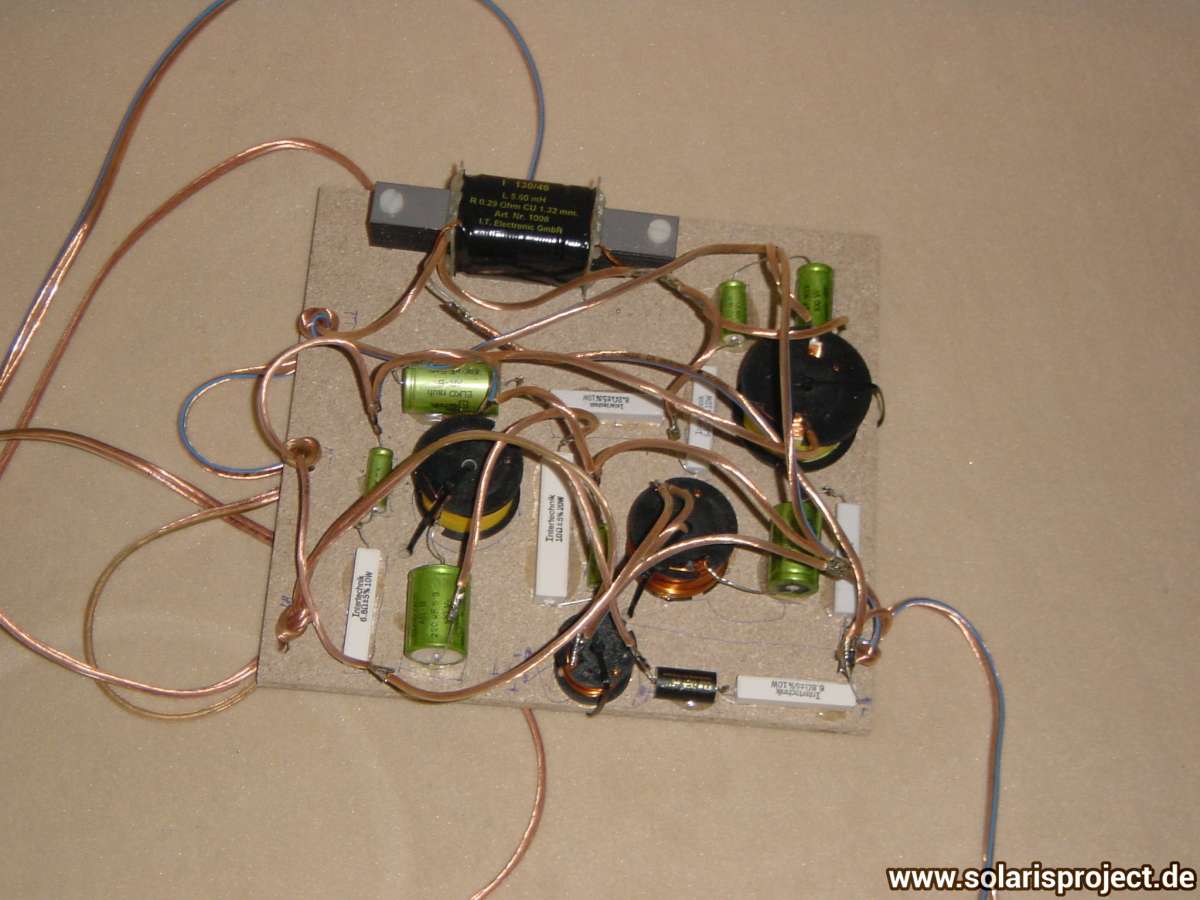

Crossover board with mounted components
Crossover board with copper wire connections

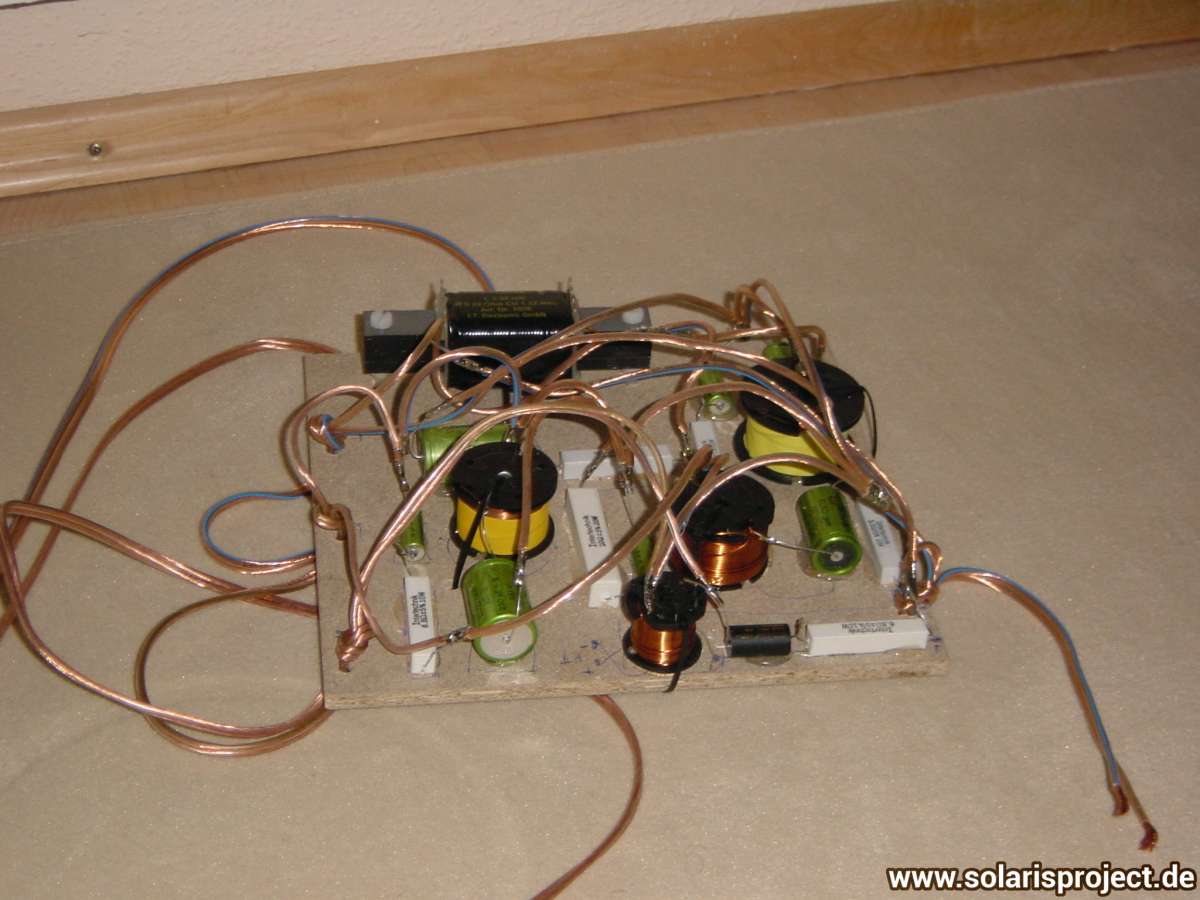

Assembled crossover circuit board
Crossover board with components and wiring

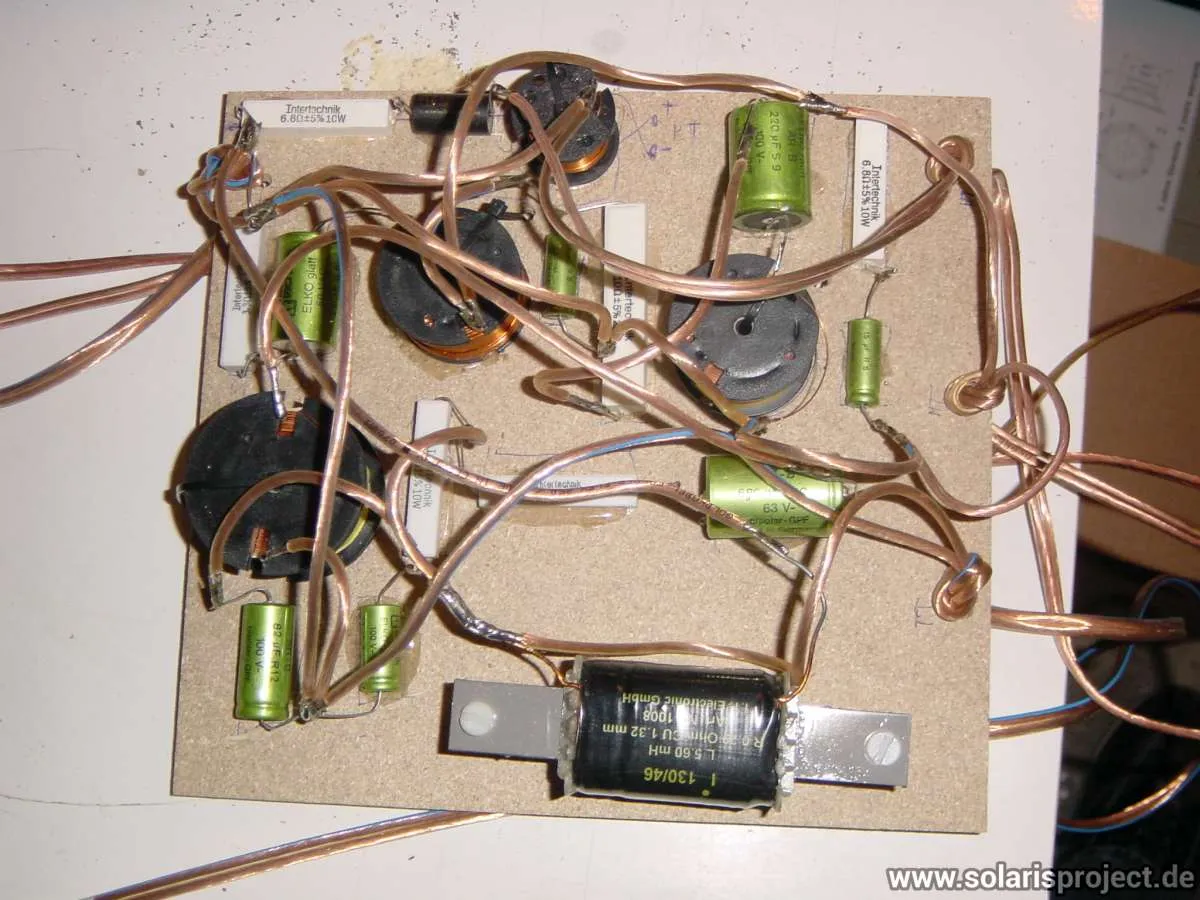

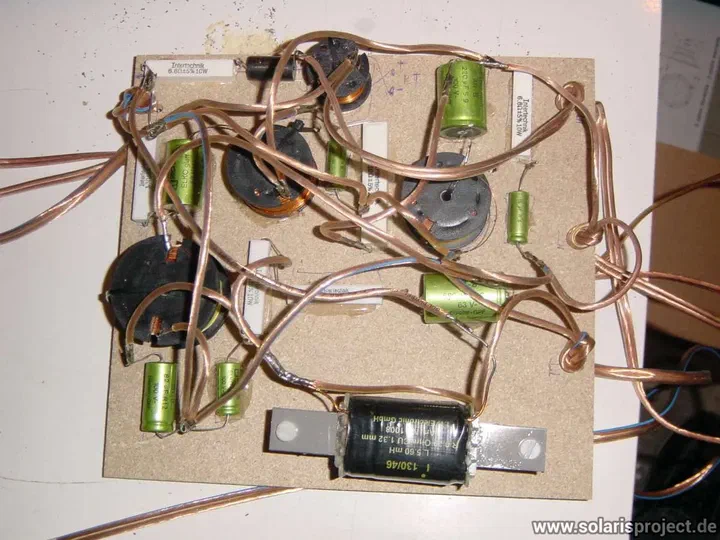

Completed crossover circuit board

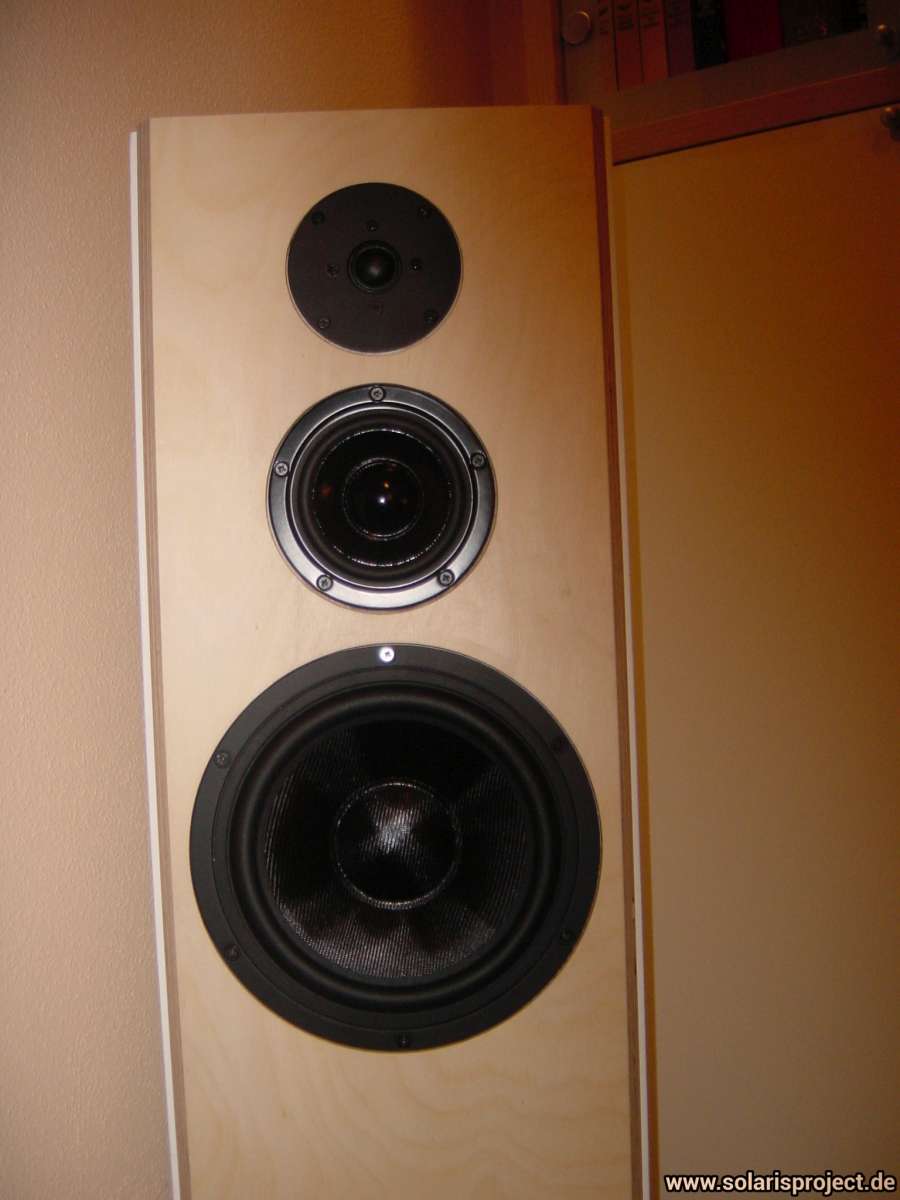

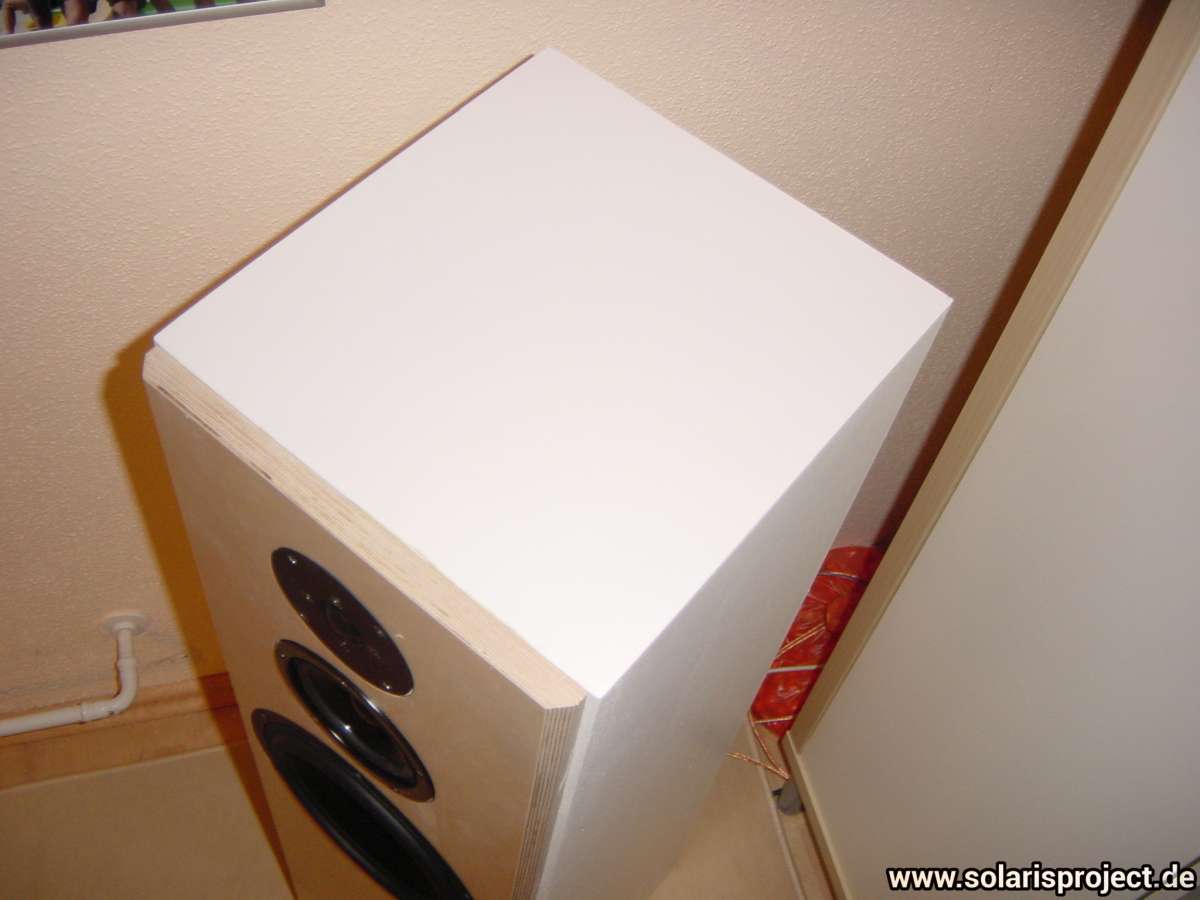

Bilder fertiger Lautsprecher

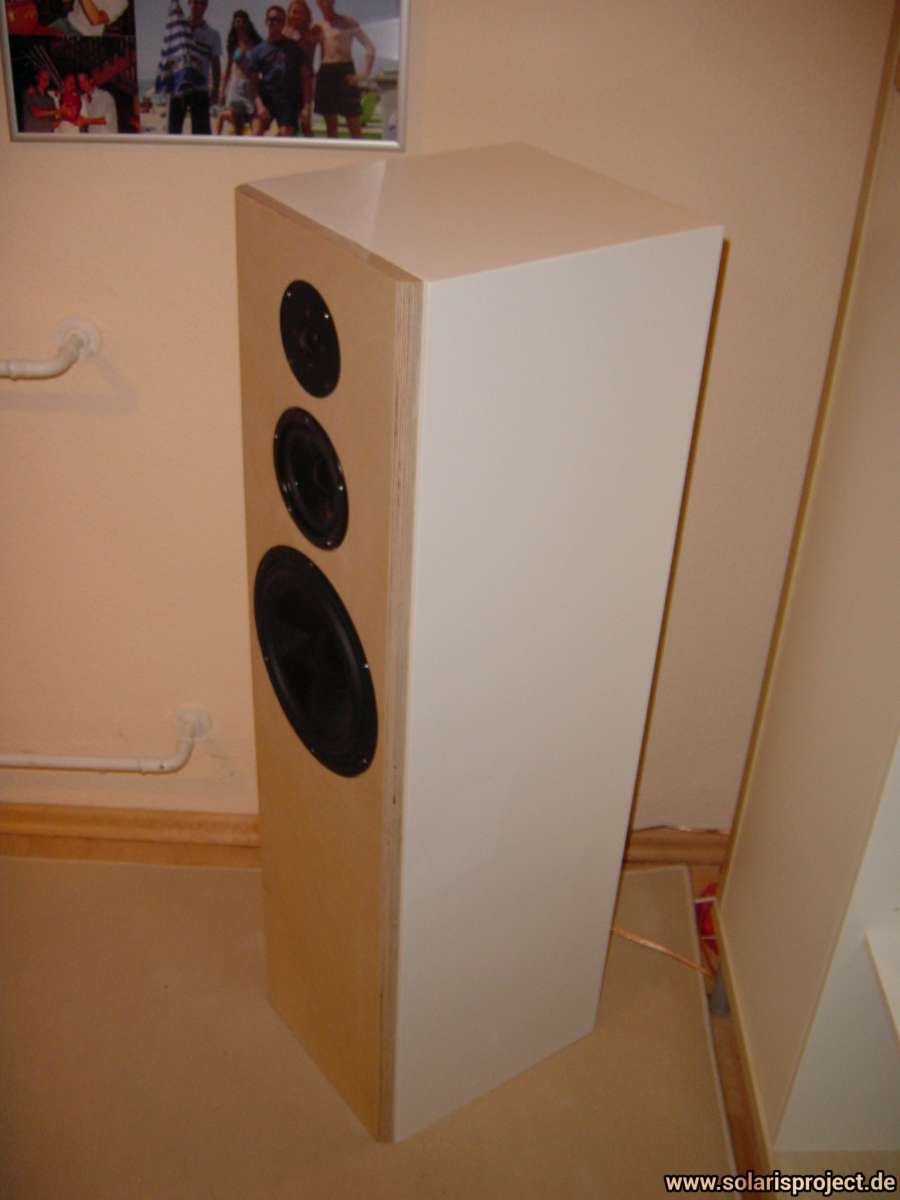

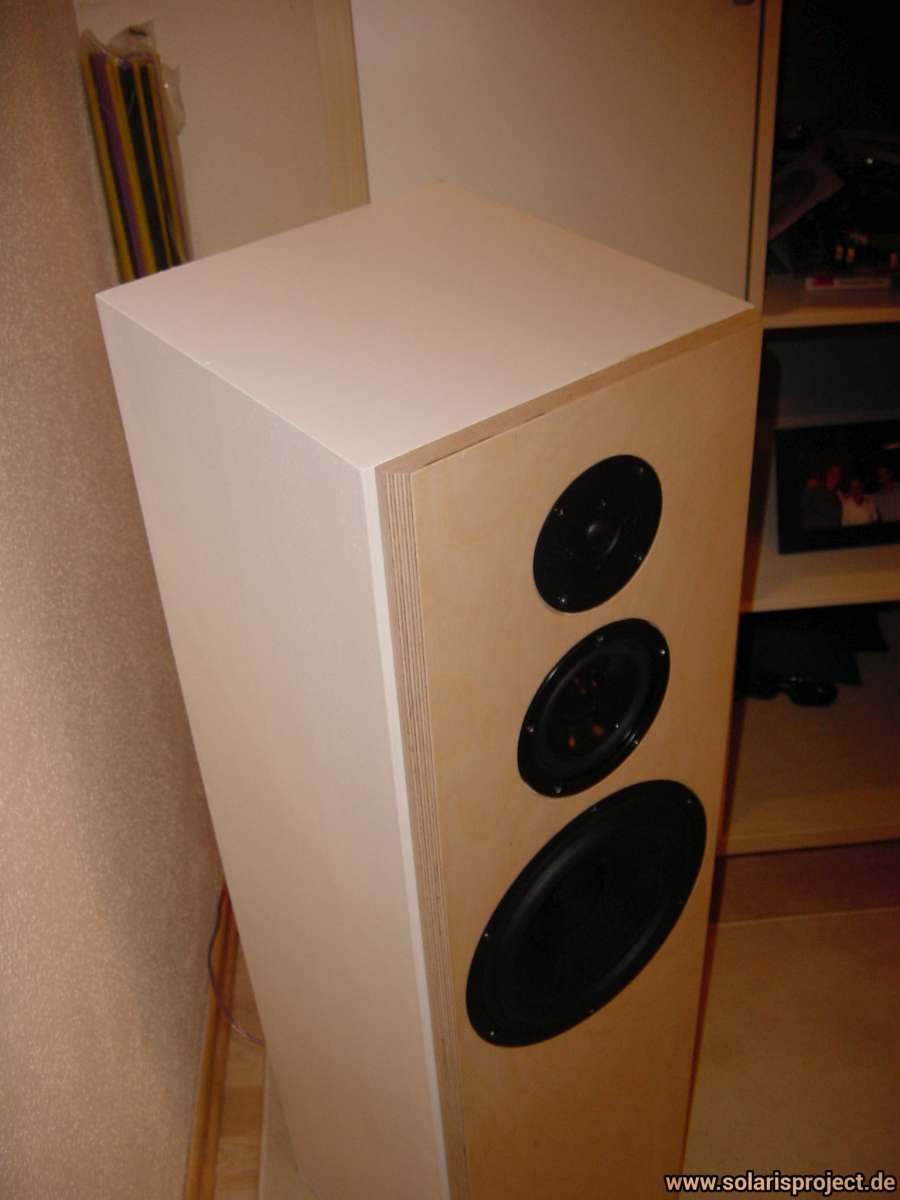

Finished speaker with light wood cabinet and black drivers
Finished speaker standing in living room
Completed Atlas 200 Light speaker pair
Finished DIY speaker in room setting
